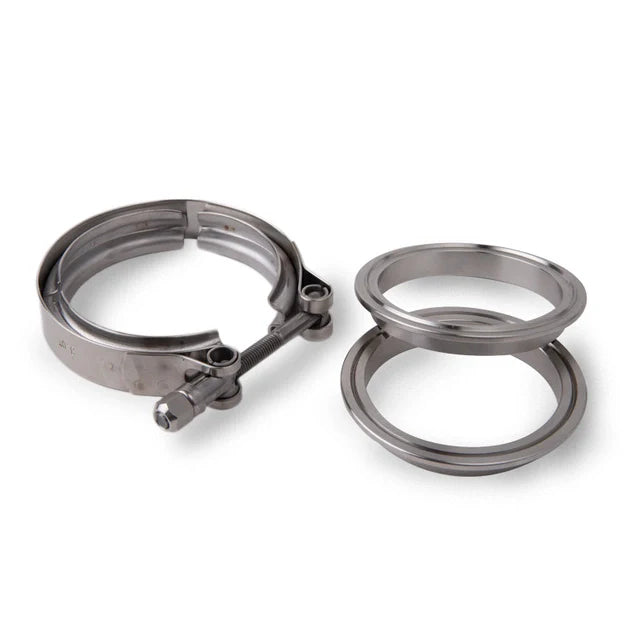

V-band 4" (102mm) kit Stainless

Conical seal = No need for extra gaskets

V-band 4" ( 102mm )

Stainless v-band set of very high quality. These flanges are self-sealing so no extra packing is needed. The V-band clamp is compact and cleverly designed so it provides a good clamping connection without having to pull it hard. Lock nut completely in metal and not in nyloc which burns up.
New updated model with a conical seal at the steering that makes the V-band joint completely tight when you tighten the clamp.

Technical info

Inner diameter: 102mm
Outer diameter: 121.5mm
Thickness over pipe connection: 25mm (both flanges)
Thickness at clamping surface MIN: 3mm (6mm with both flanges)
Thickness at clamping surface MAX: 5mm (10mm with both flanges)
