Universal Catch Can 0.25 liter

Universal Catch Can 0.25 liter

55.000 ISK
Útsölu verð 55.000 ISK
Útsala! Ekki til á lager

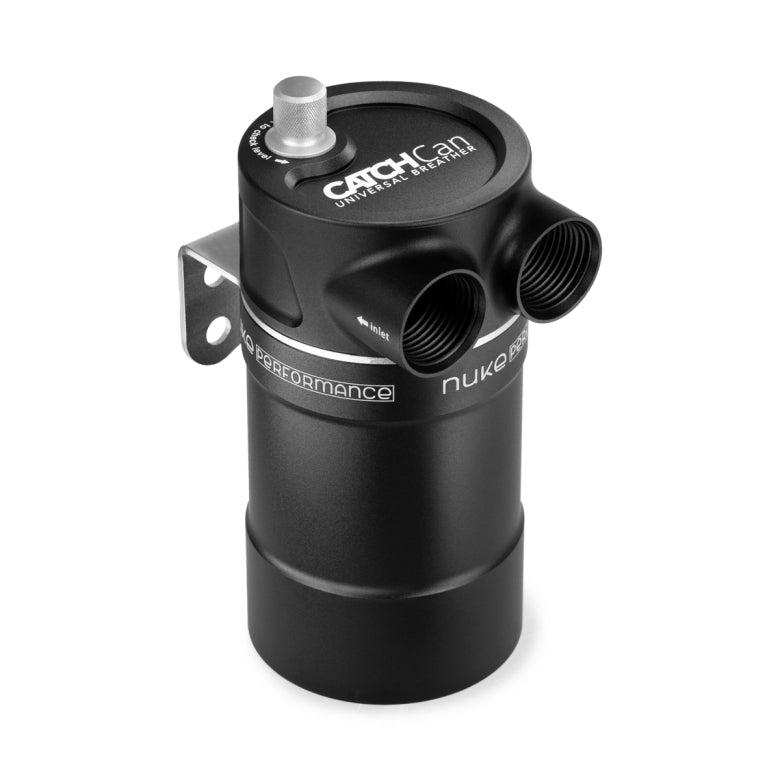

Nuke Performance Universal Catch Can 0.25 liter, the newest and smallest addition to the lineup of oil catch cans.

Universal single inlet and outlet oil catch can with internal baffling and with a new oversized semicircle 300-micron filter disc. Equipped with AN-10 ORB threads both for the inlet and outlet port. For motorsports, tuning, and street usage for any kind of vehicle that is in need of a crankcase gas catch can.

 0.25 liter catch can capacity
 360° rotating stainless steel bracket
 Oversized 300-micron internal filter disc
 AN-10 ORB inlet / outlet, for the highest possible flow
 Easy drainage through the 1/4" drainage plug
 Dipstick for fast and easy reading of internal level

The Nuke Performance Universal Catch Can 0.25 liter (1,05 US cups) is the newest addition to the oil catch can lineup, and thanks to its small form factor it suits your every engine bay, a perfect complement to the bigger dual-inlet catch cans from Nuke Performance. Can be used for both atmospheric and recirculating setups.

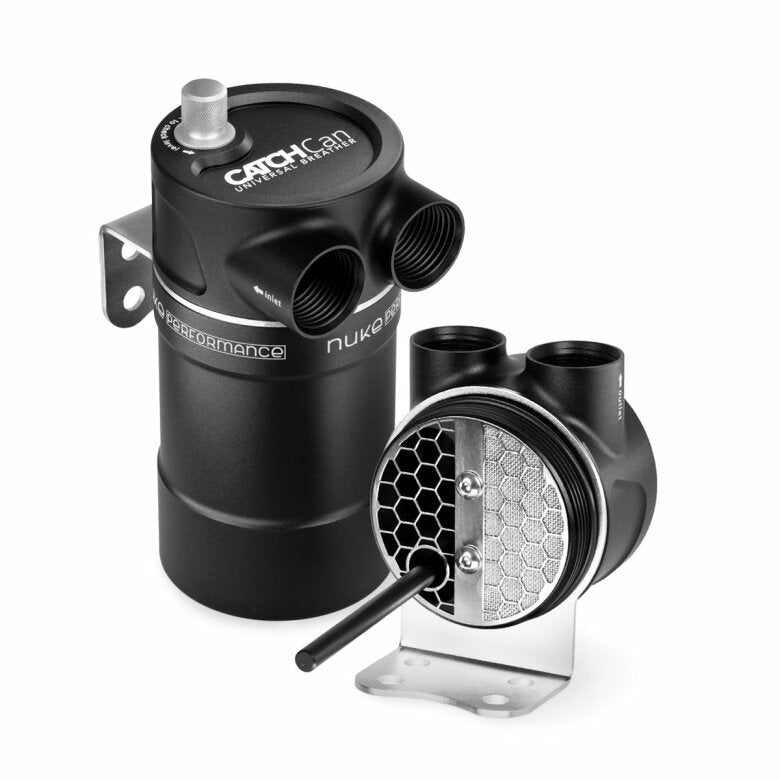

 World-class internal filtration with the oversized internal 300-micron filter disc, maximum functionality in a small form factor.
The unique internals prevents particles from escaping the oil catch can, thanks to its internal 300-micron filter disc that is used for both atmospheric and recirculating installation. The internal filter dis makes sure to filter your crankcase gasses, and gives you outstanding filtration which saves your engine in the short and long run.

Using a universal oil catch can for your engine prevents contamination buildup, enhances engine performance by cleaning up the intake air, and being able to measure the contamination level gives you an oportunity to keep an eye on the wear and health of your engine.



 A new and smaller catch can, for easy application into even the most narrow engine bays.
This new addition to the Nuke Performance oil catch can lineup offer the same quality and function but in a much smaller design.

 Yes, size matters. This is our smallest oil catch can yet

The 0.25 liter capacity is perfect for everyday vehicles and is a perfect complement to the bigger catch cans that Nuke Performance offers for motorsports applications, such as the lightweight real-carbon 0.75 liter catch can with dual inlets.



 Oversized, single AN10 inlet and outlet ports for maximum flow and various fittings to choose from.
The Universal Catch Can 0.25 liter from Nuke Performance manages to use oversized AN-10 ORB threaded inlet and outlet ports thanks to its clever design. This widens the application range thanks to being able to coop with high crankcase gas flow with only a single inlet and outlet. The ORB fittings are available in various sizes and options and are sold separately as accessories.
AN-10 ORB to 8mm Hose Part # : 700-04-124
AN-10 ORB to 10mm Hose Part # : 700-04-125
AN-10 ORB to 13mm Hose Part # : 700-04-126
AN-10 ORB to 16mm Hose Part # : 700-04-127
AN-10 ORB to AN-6 Male Part # : 700-01-108
AN-10 ORB to AN-8 Male Part # : 700-01-109
AN-10 ORB to AN-10 Male Part # : 700-01-110
AN-10 ORB to AN-12 Male Part # : 700-01-111

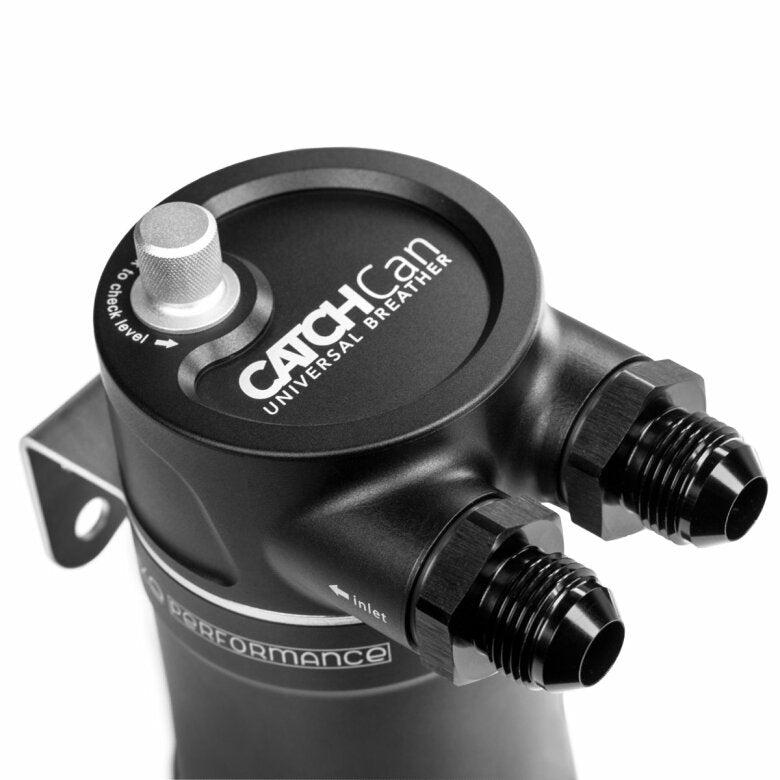

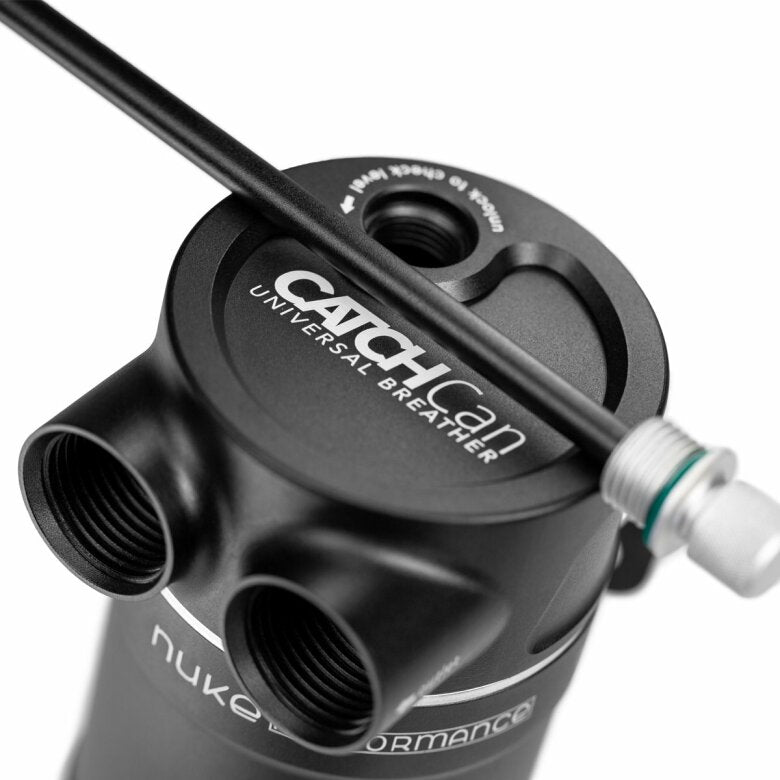

 Integrated dipstick for easy reading of the internal level, easy access on top of the catch can body in a new low profile version.
To be able to check the internal contamination level is crucial so you empty the can in time, that is why we located an anodized aluminum dipstick on the top of the catch can lid so it is quick and easy to check the level between laps on the race track, or when checking your levels before hitting the track or streets.

 It´s fast and easy to check the catch cans level
 Easy to reach dipstick in a new low-profile design

The Universal Catch Can 0.25 liter uses a new low-profile version dipstick head which takes up minimal space thanks to its clever design.



 Drainage is made easy with the optional 1/4" drainage kit.
The Universal Catch Can 0.25 liter from Nuke Performance uses a two-piece design, making it really easy to empty the lower cop when needed, just unscrew the bottom part and leave the top part into the bracket together with the hoses attached. But for an even easier way, use the optional peacock valve kit that uses the 1/4 drainage port in the bottom. Route the included 2m (6 ft) hose to an easy-access location, for example, when wheelhouse. It makes it easy to drain/collect the residual products without having to disassemble the catch can from the engine bay.
Catch Can Drainage Kit Part # : 265-10-101



 Designed and developed in Sweden, guaranteeing the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Universal Catch Can 0.25 liter is of the highest possible quality and with the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams, making sure that functionality as well as the design meets the absolute highest standards, or even making its own standard.

There is no substitute for the quality of Nuke Performance.


 Universal Catch Can 0.25 liter Specifications:
For more information about specifications, view the product sheet.

 Catch can capacity 0.25 liter (1.06 US cup)
 Inlet ports / threads 1 x AN-10 ORB - view assortment
 Outlet port / thread 1 x AN-10 ORB - view assortment
 Filtered outlet port YES, 300-micron filter disc
 Replaceable filter disc YES, Part # 2700-06
 Drainage port / thread 1 x 1/4 BSPP, plug included
 Included bracket 360° rotating stainless steel bracket
 Dipstick YES, aluminum dipstick included

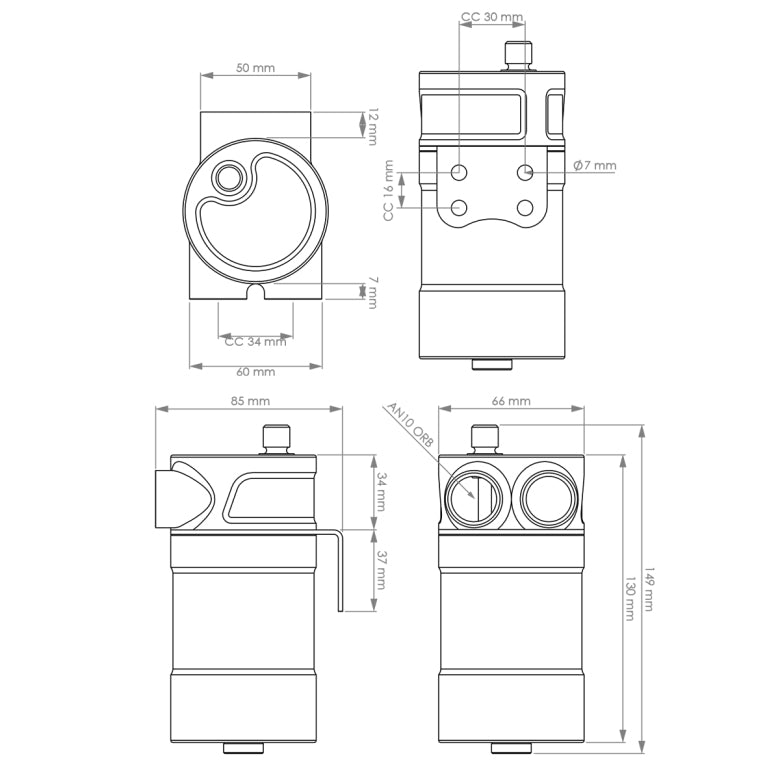

 Height * 149 mm (5.86")
 Width 66 mm (2.60")
 Depth 85 mm (3.34")
 Weight 439 g (0.97 lb)
 Setup available Recirculating / Atmospheric use
 Part # 270-01-201
 EAN ‌‌7340209501377

* with included dipstick and drainage plug mounted

 Nuke Performance Universal Catch Can 0.25 liter includes:
1 x 0.25 liter capacity universal catch can
1 x 360° rotating stainless steel bracket
1 x 300 micron filter disc for the outlet port
1 x Anodized aluminum dipstick for level reading
1 x 1/4 BSPP Plug (drainage port)

 Download Product Sheet (.pdf)
 Accessories / Spare Parts
