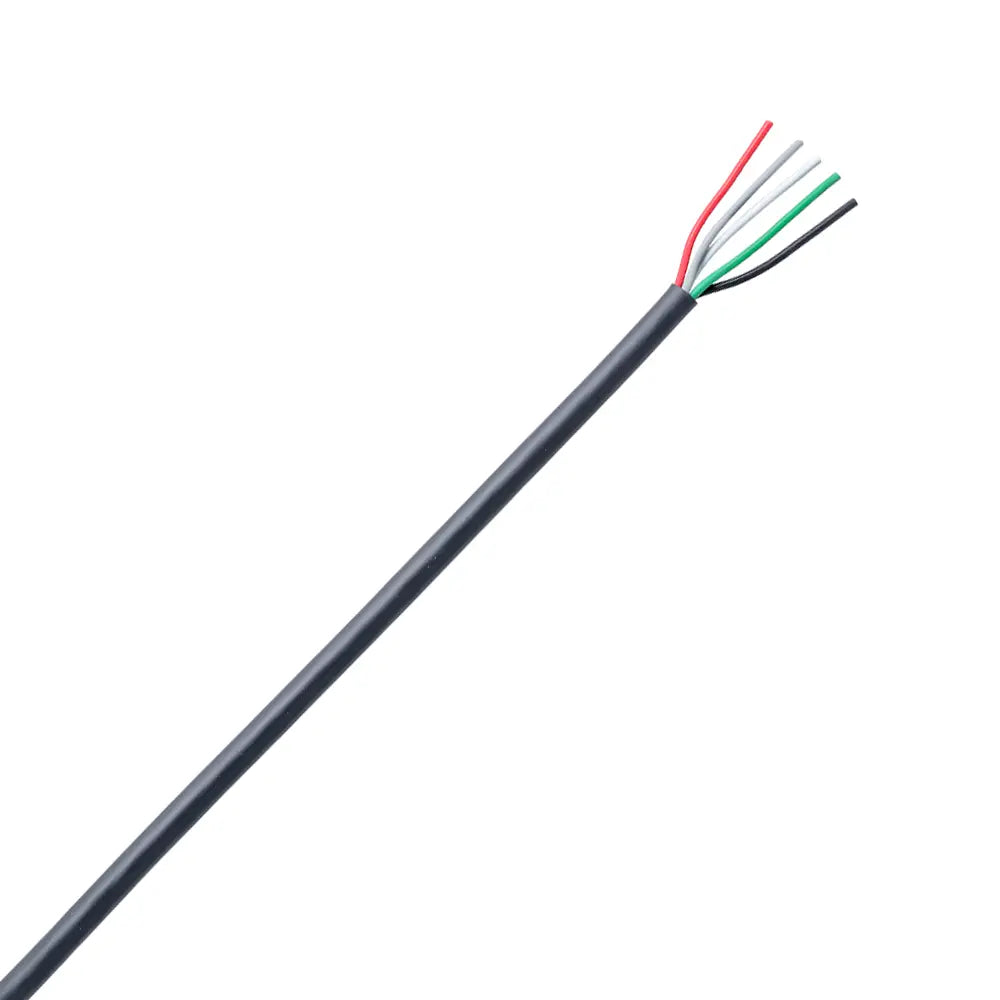

TXL 20 GA/0.8q 5 CONDUCTOR CABLE

5-conductor 20 AWG TXL Jacketed Cable.

• Voltage Rating: 600 VDC
• Conductor Material: Stranded bare copper
• Insulation: XLPE
• Jacket Material: Black flexible PVC, UV/oil/moisture resistant, VW-1 rated
• Temperature Range: -30°C to 105°C (221°F to -86°F)
• Nominal O.D.: 0.240" (6.09 mm)
• Weight: Approx. 44 lbs. per 1000'
• Stranding: 19/30
• Conductor Colors: Black, Red, White, Green, Gray
• Shielding: O/A Mylar Tape with 0.024” wall
• Filler: Fibrillated polypropylene in each interstice
