Roll over valve V2 compact AN6 black

Roll over valve V2 compact AN6 black

A modern and compact roll over valve with splash protection that can be used in tight spaces and helps keep fuel in the tank during sharp turns.

Space shortage
No more space shortage with this ultra-compact roll over valve!

Leaking fuel
No more fuel leakage when turning with this smart roll over valve!

Usage
Use together with original tank fitting or install in a fuel cell. For original tank or aftermarket. The function can be easily adapted with accessories.

Function

1. AN6 connection for easy connection to other AN systems.
2. Integrated O-ring for easy sealing against different surfaces.
3. A plastic sealing ball that floats up with the fuel and seals in the event of a sharp turn/overfilled tank.
4. A metal sealing ball that seals if the car ends up upside down.
5. Ventilation hole 1 (Hole 2 is located between O-ring and sealing balls)

Mounting
Mounts vertically in a threaded or drilled hole.
For threaded: Seals with integrated o-ring.
For drilled hole: Lock with AN6 nut and seal with an o-ring or washer.

Specifications:
Thread 1: AN6
Thread 2: AN6 ORB (O-ring)
Vent hole: 3mm

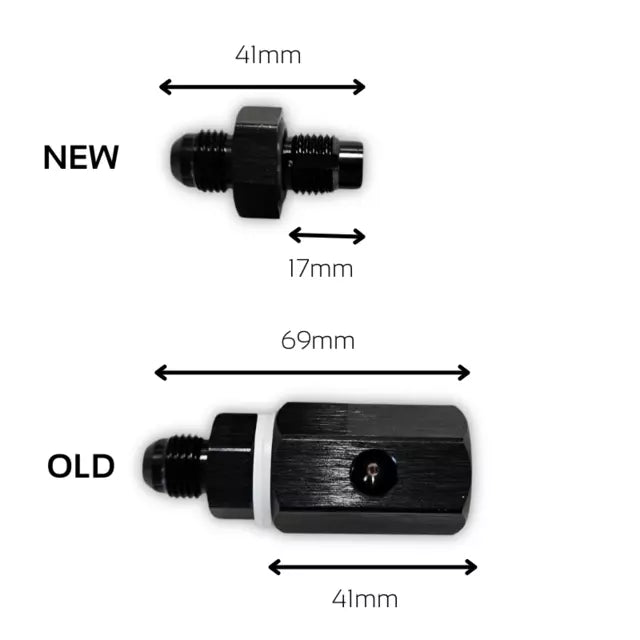

NEW vs old roll over valve:

Diameter in tank: 24mm less than old model
Diameter of insertion: 18mm less than old model
Size: ~6000 mm2 less than old model

----------------
