Radiator/Vatnskassi 800x450mm High flow AN20 Universal (Silver)

Water Cooler High Flow AN20 Universal (Silver)

Universal high-flow water cooler from Hurricane motorsport with AN20 connections in each corner to fit your installation optimally.

- Adapt the water cooler according to your build and not the other way around!

• AN20 connections (internal thread)
• Customizable size of connections
• Customizable placement of connections
• Hose or AN connection
• Suitable for both expansion vessels and boiler systems
• Extreme cooling capacity with modern cross-flow design
• Mounting connections in both top and bottom

This water cooler from Hurricane Motorsport takes your cooling system to new levels where you adapt the cooler to your build and not the other way around. Now this universal cooler has connections that allow you to get the connections exactly the way you want them.

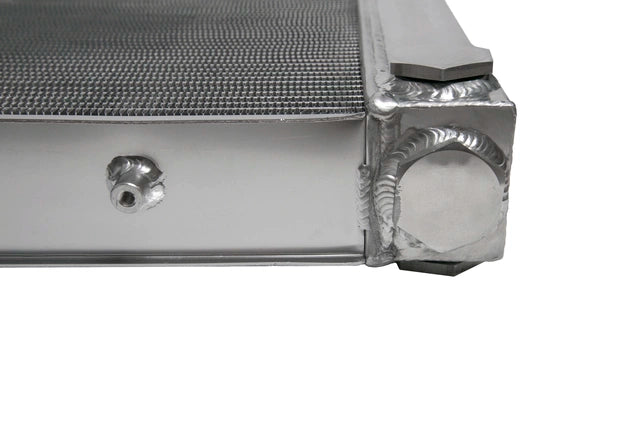

Placement of connections
Top right or top left, bottom right or bottom left? -You choose how it should look. With AN20 connections, you have the option of choosing the largest or smallest connection you can imagine. Everything from small to large hose connections and AN fittings will fit from now on. No welding or modification required. everything is screwed on easily with an o-ring seal.

Type of connections
38mm hose connection, 40mm hose connection, AN connections or mixed?
Even the type of connection is completely flexible. the four AN20 connections allow you to freely choose which connections you want to use.
AN connections on the inlet and hose connection on the outlet or the other way around, either way. Everything fits with adapters, no welding or modification needed. Everything is adapted with adapters that are written on with an o-ring seal.

Expansion vessel or boiler system
Regardless of whether you use a cooling system with an expansion vessel or a boiler system, this water cooler works because you have two AN20 connections that fit both systems.
Choose adapter with return hose to fit systems with expansion vessels or choose a radiator cap adapter to fit boiler systems. Here, too, everything is prepared so no modification is needed, but everything can be easily screwed into place.

Dimensions (without connections):
Width: 80cm
Height: 45cm
Thickness: 8cm

Core (without connectors):

Width: 670mm
Height: 445mm
Thickness: 80mm

Weight 4.5 kilos without connections.

----------------
