Oil return flang - AN12 long 45° Steel

Oil return flang - AN12 long 45° Steel

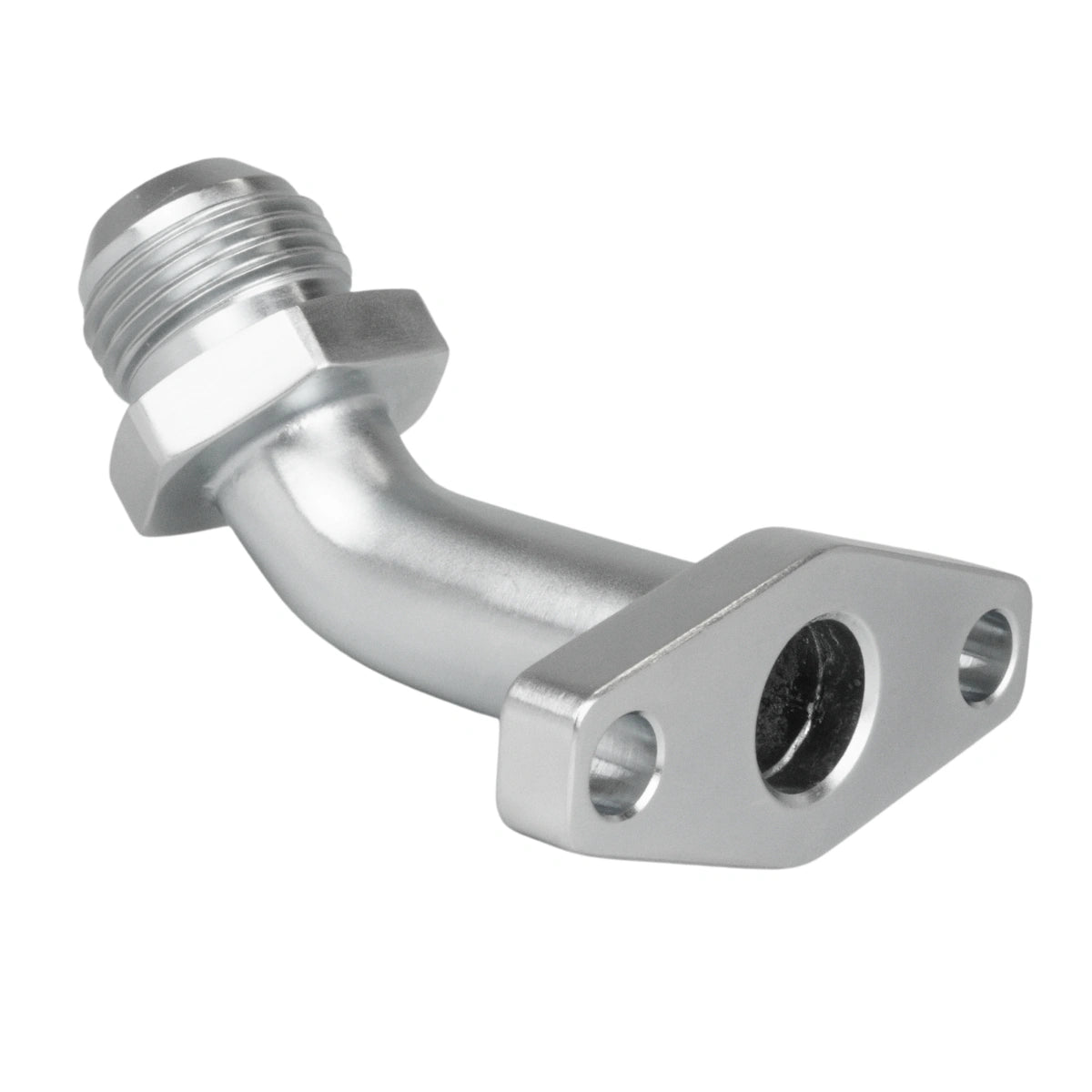

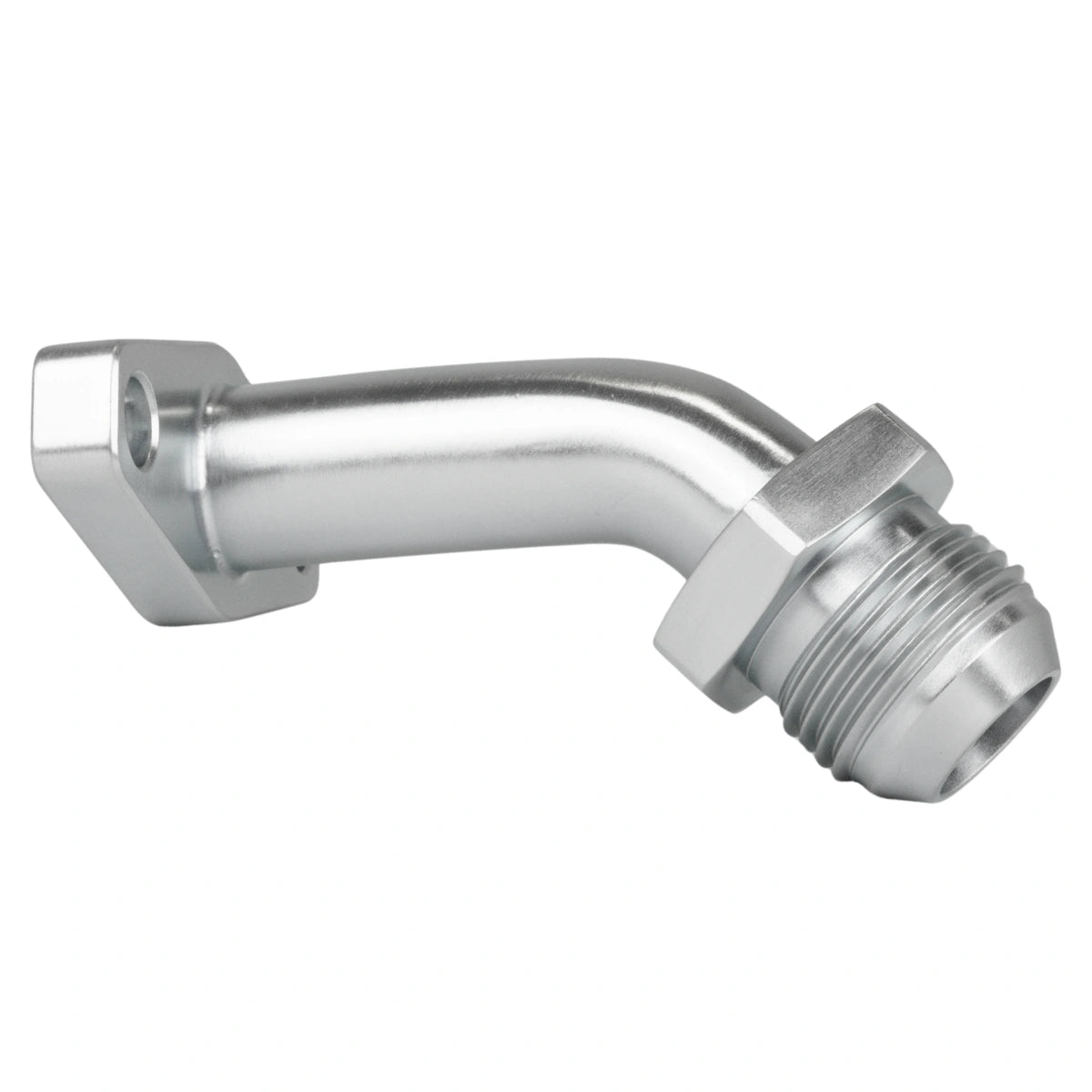

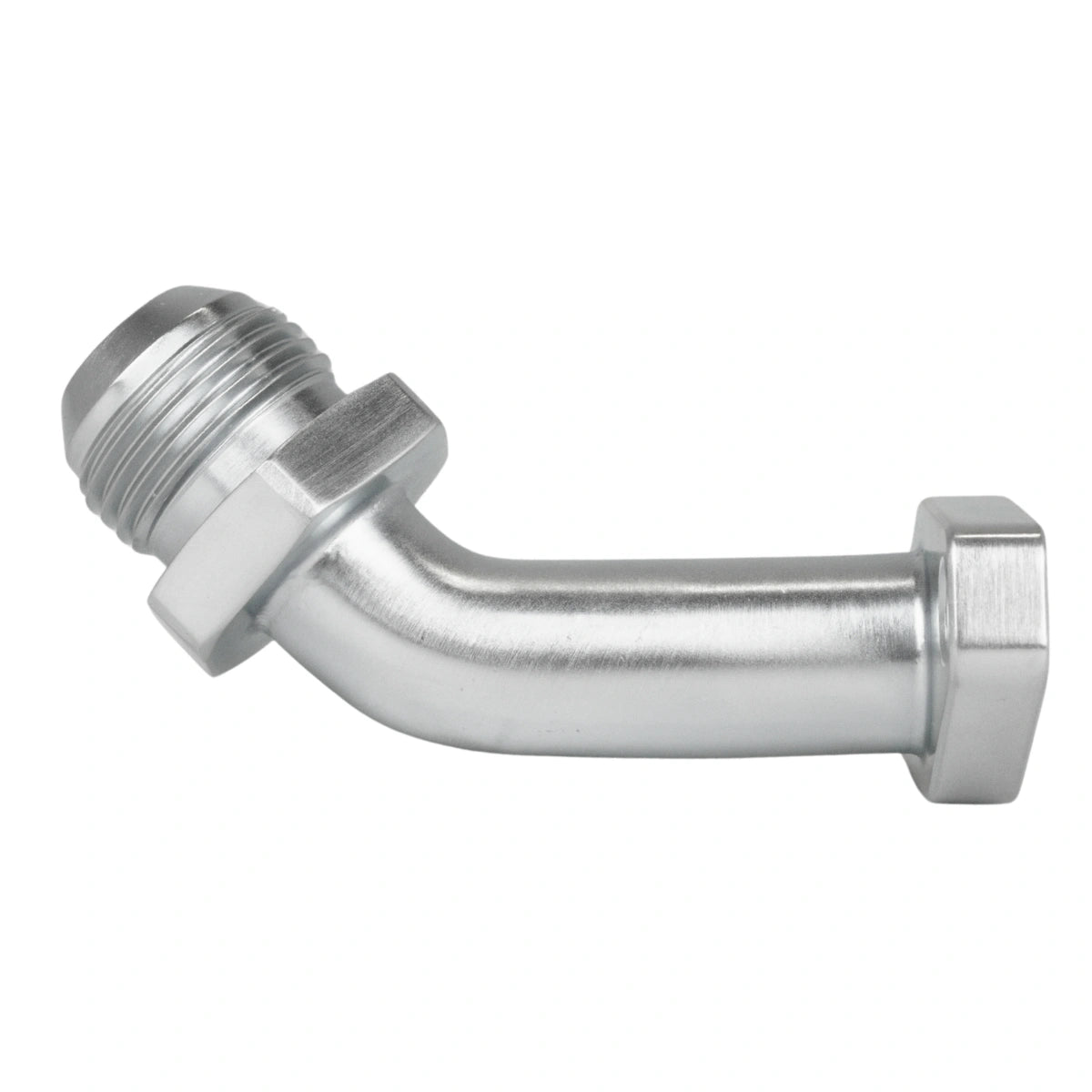

Return flange in long model, 45 degrees, developed for applications where space is limited. The flange has a 45° angle, making it ideal for tight installations and facilitating oil return routing without fittings interfering with surrounding components.

The extended design with protrusion ensures that the AN fitting does not collide, providing better fitment and easier installation.

Specifications:

• Connection: AN12
• Center distance (bolt spacing): 51 mm
• Inner diameter: 16.5 mm (for optimal oil flow)
• Total length: ~ 90 mm
• Material: Steel
• Color: Silver

Fits:

• Holset turbochargers (long model)
• BorgWarner S200-SX-E
• BorgWarner S300-SX-E
• Precision Turbo and other units with 51 mm bolt spacing on oil return

Features & Benefits:

• 45° angled return flange for better fit in tight spaces
• Extended design reduces risk of collision with compressor housing
• Optimized flow thanks to 16.5 mm inner diameter

Other:

• Minor adjustments may be required on some turbochargers:
  Slightly enlarge bolt holes
  Adjust fitting depending on compressor housing design
