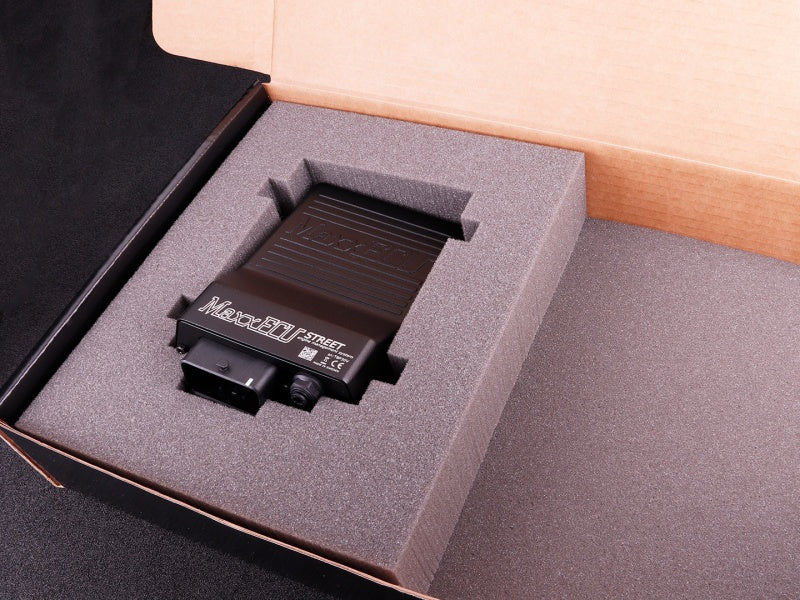

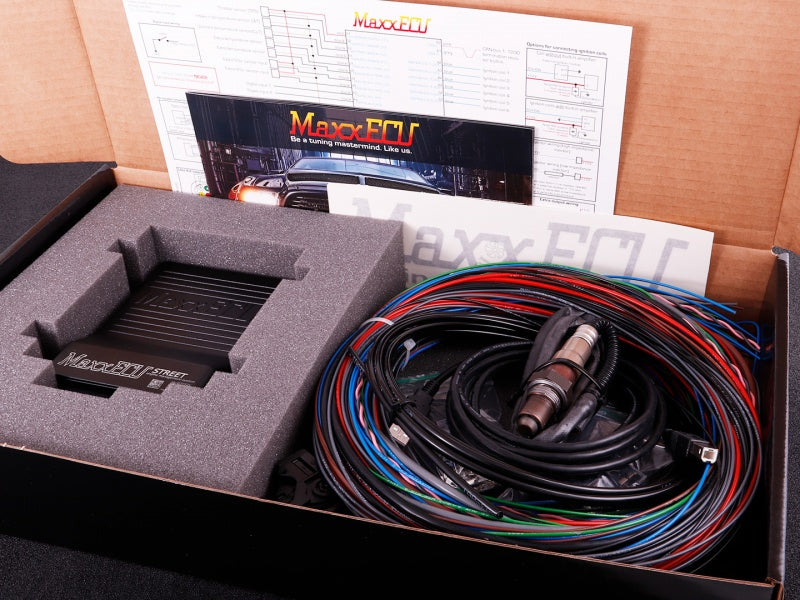

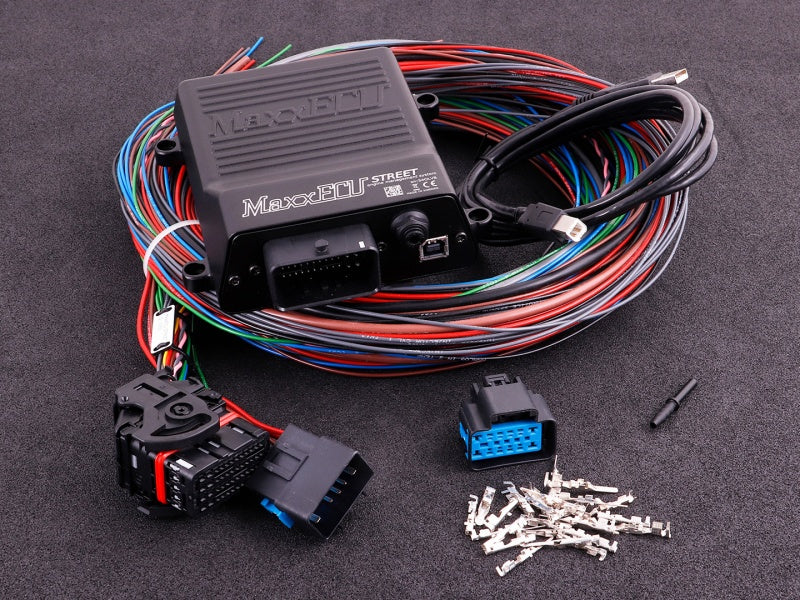

MaxxECU STREET

MaxxECU STREET

122.000 ISK
122.000 ISK
Útsala! Ekki til á lager
Gerð
  • Advanced entry-level engine control system for up to 6 sequential cylinders. Up to 12 in wasted spark
  • Faster and easier tuning with built-in wideband lambda and a built-in MAP-sensor up to 3 bar / 43.5 psi of boost.
  • Get started faster with the easy-to-use MTune PC-software

Target engines for MaxxECU STREET

  • All 1-12 cylinder engines (4-stroke)
  • Up to 6 cylinders fully sequentially
  • Up to 12 cylinders in wasted spark

MaxxECU STREET inputs

  • Intake air temperature sensor (IAT)
  • Coolant temperature sensor (CLT)
  • Throttle position sensor (TPS)
  • Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2, 4.9
  • 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
  • 2 extra temperature sensors. Can be used as switches or to control additional functions
  • 2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
  • 2 digital inputs used for example for speed sensors (Hall) or switches
  • Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost

MaxxECU STREET outputs

  • 6 injectors outputs. High impedance only
  • 6 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
  • 4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)

MaxxECU STREET technical

  • CAN bus (additional wires required)
  • USB communication for tuning with MTune
  • 8MB memory for internal logging, up to 1000Hz
  • Supply voltage 8-22V
  • ARM Cortex-M3 120MHz main processor
  • Resolution on ignition: 0.1 degrees
  • Resolution on injectors: 0.001 ms
  • Updates the fuel and ignition calculations 2000 times per second
  • The fastest PC communication on the market
  • Weight: 520g
  • 140x134x42mm (including mounting points, excluding connector)
  • Aluminium casing

MTune tuning features

MaxxECU trigger support

See supported trigger system in online tech pages.

MaxxECU engine protections

  • EGT fuel correction
  • Lean power cut
  • EGT power cut
  • Rev limit
  • Advanced warning and protection system
  • Lambda fuel correction

MaxxECU auto transmission support

MaxxECU functionality

  • Launch control (up to three stages)
  • Rolling launch
  • Anti-lag using solenoid or E-Throttle
  • Traction control
  • Power management
  • Shift-cut
  • Overrun fuel cut
  • Lambda control (closed loop)
  • Nitrous control
  • AC control
  • Boost control (closed/open loop), extra compensation tables.
  • Boost level switching
  • E-Throttle support
  • VANOS/VVTi support
  • Logging: Internal up to 1000Hz, PC logging 20Hz
  • Built-in error diagnostics and handling
  • Idle control using E-Throttle, idle solenoid, stepper motor or ignition timing
  • Closed loop anti-stall
  • Ignition timing lock for easy synchronization with timing light
  • Flex fuel

MaxxECU advanced features

  • Speed limiters
  • Individual fuel correction per cylinder
  • Injector staging
  • Virtual fuel tank/fuel consumption
  • Filters on TPS, RPM and MAP signals
  • Trailing ignition
  • Virtual inputs/internal outputs to activate internal functions
  • Use of TYPE-K sensor to report IAT up to 350 degree C/660 F
  • Wastegate control with CO2 for predictable boost
  • Extra user table activation based on user defined settings
  • After launch power limit, function to control traction after launch
  • Automatic starting and stopping of internal log function based on user conditions (speed, load, error code etc.)
  • Timers and distance counters
  • CAN for OEM protocols, OBDII, and CAN modules
  • Clutch slip control with user defined tables (as an example)
  • Measure injector resistance directly from software
  • Built-in trigger oscilloscope
  • Built-in trigger logger
  • Flexible load/speed axis selection
  • Flexible user output functions
  • Flexible user PWM/FREQ output functions
  • Speedometer output function
  • Tachometer output selectable 5/12V, supports external flyback coil
  • Sequential gearbox control
