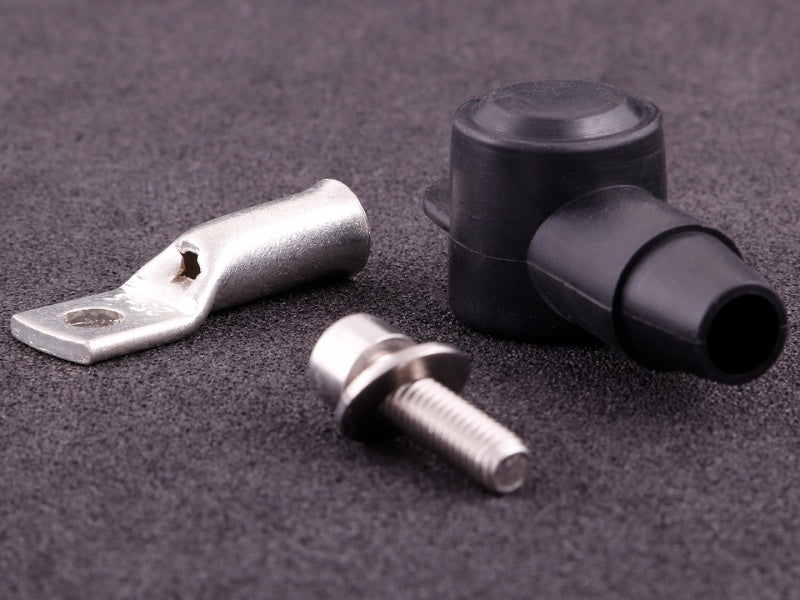

MaxxECU PDM20 accessories

MaxxECU PDM20 accessories

2.500 ISK
2.500 ISK
Útsala! Ekki til á lager

SÉRPÖNTUN, þessa vöru er hægt að versla þó svo að hún sé ekki til á lager.

Um leið og gengið er frá greiðslu verður varan sérpöntuð frá MaxxEcu. (Tekur umþ.b. 3-5 daga)

Selected features

  • Max 230A
  • 20 outputs (8x25A 8x15A 4x8A)
  • 7 digital / analog 0-24V inputs
  • All outputs can be PWM controlled
  • Dedicated +5V power supply and sensor ground
  • CAN bus for communication and setup management with MaxxECU MTune PC software
  • Overcurrent protected adjustable levels with automatic restart with soft start option
  • Warning levels for under over currents
  • Works with all MaxxECU devices
  • Support for CAN keypads
  • Error code handling
  • Built-in energy saving mode that draws only 0.004A

MaxxECU PDM20 general

  • -40 to +125 deg C temperature range
  • Reverse polarity protection
  • 6-22V operating voltage
  • 32-bit ARM Cortex-M3 CPU
  • 132x140x42mm (excluding protruding connectors)
  • 1x 34-pin and 1x 26-pin Superseal connectors
  • M6 screw for battery connection
  • PC communication over CAN-bus via any MaxxECU to MTune

MaxxECU PDM20 inputs

  • 7 digital / analog (0-24V) inputs
  • Software selectable 12V pullup
  • CAN keypad (4,6,8,12 keys)

MaxxECU PDM20 outputs

  • 230A maximum current throughput
  • All outputs are PWM capable
  • Current and voltage measuring
  • 6 outputs with H-bridge drivers
  • Overtemperature protection
  • Output overcurrent protection via emulated fuse characteristics and hardware backup protection
  • Monitored +5V sensor supply output
  • Outputs can be paired to increase current capacity
Skoða nánari upplýsingar
