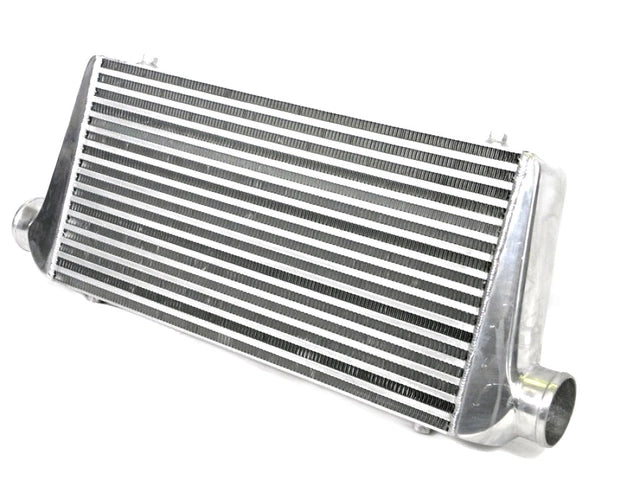

Intercooler 68cm wide (500x300x76) 2.5" stútar

Aluminum intercooler

Used to effectively cool the intake air from the turbo to the engine. Also called FMIC (front mounted intercooler). One of the most important parameters for an efficient engine is a low intake temperature. This can be achieved in many different ways and with an efficient intercooler / charge air cooler you have come a long way. This intercooler is a combination of compact design and efficiency.

Cell package

Bar and plate construction that is widespread all over the world in everything from industry to motorsport. These cell packs have smooth transitions between air channels that minimize pressure drop and uneven distribution of air across the entire cell pack. The efficiency of these cell packs is high! -you get a lot of cooling for the money!

Gables

The end caps are cast aluminum and designed to be as compact as possible while maintaining flow. The round shapes distribute the air so that the entire cell pack is utilized to the maximum. Strong construction that allows easy welding of own intercooler mounts or sockets for sensor and dump valve.

Technical data:

Width across connections: 680mm
Cell package: 500x300x76mm
Connections: 63mm (2.5')
Construction: Bar and plate
Materail: Aluminum (cell package and end caps)
Mounting: 4 M8 fasteners in total, two on the top and two on the bottom.

----------------
