Nuke Performance
Black Nylon Braided Fuel Hose AN-10
Black Nylon Braided Fuel Hose AN-10

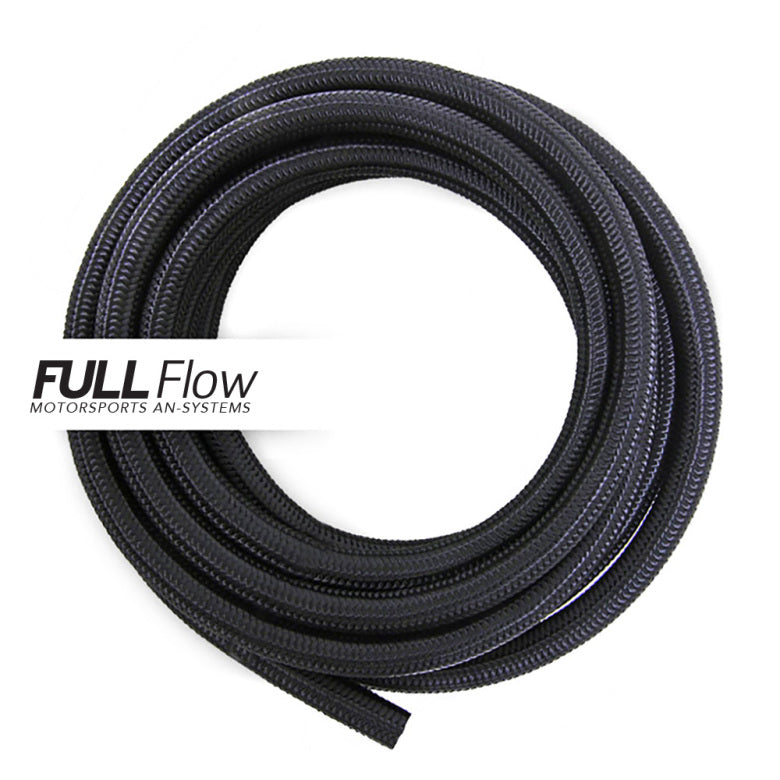

Full Flow, nylon braided fuel hose from Nuke Performance. Premium black nylon braided, nitrile fuel line for motorsport applications.
Designed with a black synthetic nitrile core to make it resistant to oil, fuels, coolants, and alcohols. Perfect combination with the Nuke Performance Full-Flow AN fitting series for all motorsports applications.
Available in AN-4 / AN-6 / AN-8 / AN-10 / AN-12
Fits the Nuke Performance Full Flow AN hose ends
Available in pre-cut lengths of 1 / 2 / 4 / 6 m
Premium nitrile fuel hose for motorsports use
Safe for all types of fuels, including ethanol
The Nuke Performance Full Flow-series premium black nylon race hose is reinforced with a single braid of bright, corrosion-resistant type 302 stainless steel wire braid, and the black braided nylon cover makes this lightweight hose both durable and attractive. Safe for alcoholic fuels, but for long-time use you should look into the Nuke Performance Full Flow PTFE series with a much longer life span when used with alcoholic fuels such as ethanol.
Outstanding performance and flow capacity for all types of motorsports
The Nuke Performance Black Nylon Braided Fuel Hose is a perfect solution for all types of motorsports applications. The very flexible fuel hose and a wide selection of matching hose ends, let you design and set up your fuel system for your every need. The Nuke Performance nitrile AN fuel hose is suitable for all types of fuels, including alcoholic fuels, but we do recommend that you use our PTFE fuel hose with a Teflon liner for long-time ethanol and methanol use.
Included heat shrink sleeves, prevents threading over time
The Full Flow nitrile fuel hose uses an additional heat shrink, you get some included with the fuel hose. Use the additional heat shrink to prevent the nylon braiding to thread over time. They are also available as accessories if you want more than what is provided.
Included in package : 1m = 2pcs / 2m = 2pcs / 4m = 4pcs / 6m = 4pcs heat shrinks
Additional heat shrinks Part # : 810-22-022
A wide variation of tools and accessories
To make your hose end and fuel setup installation as trouble-free as possible, Nuke Performance offers a wide variety of handy tools and accessories for fuel hose assembly. The adjustable aluminum wrench with its V-shape will revolutionize your hose end assembly
Adjustable Aluminum AN Wrench AN-4 to AN-16 Part # : 700-30-105
Aluminum Vise Jaws for AN fittings Part # : 700-30-201
AN Aluminum Wrenches AN-6/8/10/12 Part # : 700-30-101/2/3/4

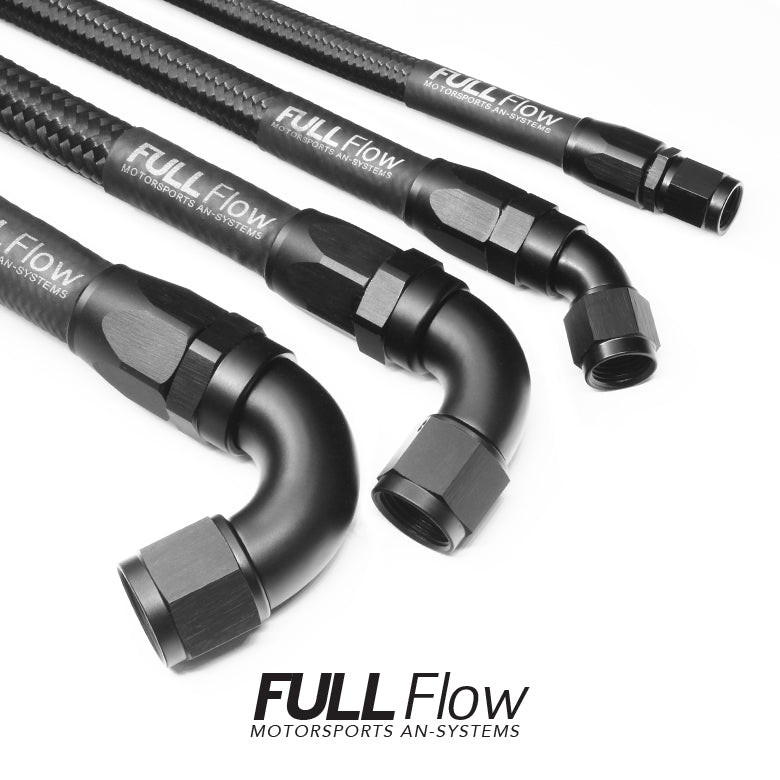

Nuke Performance Full Flow AN Hose End Fittings are available in AN-4, AN-6, AN-8, AN-10, and AN-12. The matching braided AN fuel hose is available in pre-cut lengths of 1m, 2m, 4m, and 6m (3-20ft).
Nuke Performance AN Hose End / Fuel Hose Specifications
| AN-10 Hose Series # | 820-01-110 - 820-01-610 |
| AN-10 Hose Ends # | AN-10-101 - AN-10-401 |
| Available Sizes | AN-4 / AN-6 / AN-8 / AN-10 / AN-12 |
| Fuel Hose Length | 1m (≈3ft) / 2m (≈6ft) / 4m (≈13ft) / 6m (≈20ft) |
| Fuel Compatibility | Gasoline, Petrol, Ethanol, E85, Oil, Coolant |
| Heat Shrinks Included | 1m=2pcs / 2m=2pcs / 4m=4pcs / 6m=4pcs |
| AN10 Inner Diameter | 14.29mm (0.56") |
| AN10 Outer Diameter | 20.83mm (0.82") |
| Internal Braiding | Stainless steel single layer braiding |
| Temperature Range | -40°C to 150°C (-40°F to 300°F) |
| For Motorsport Use | YES |
| AN10 Operating Pressure |
35 BAR (500 PSI) |
| AN10 Burst Pressure | 135 BAR (2000 PSI) |
