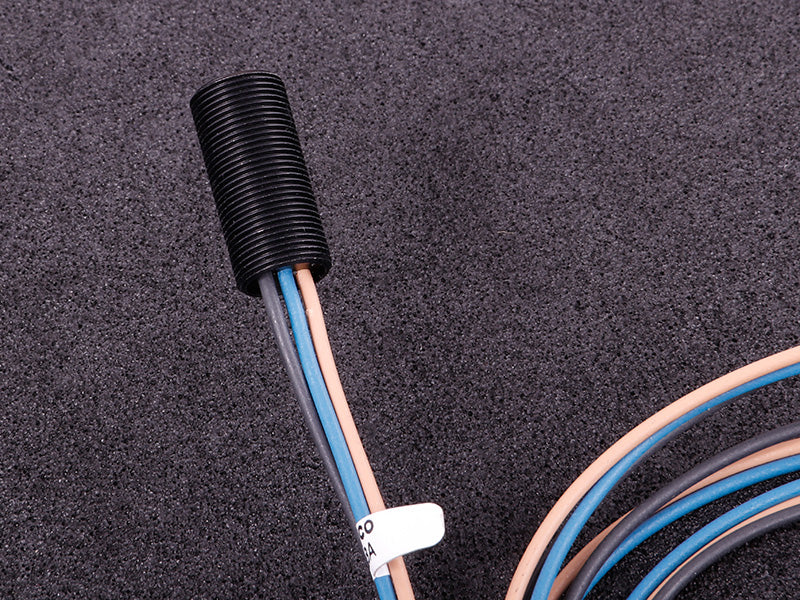

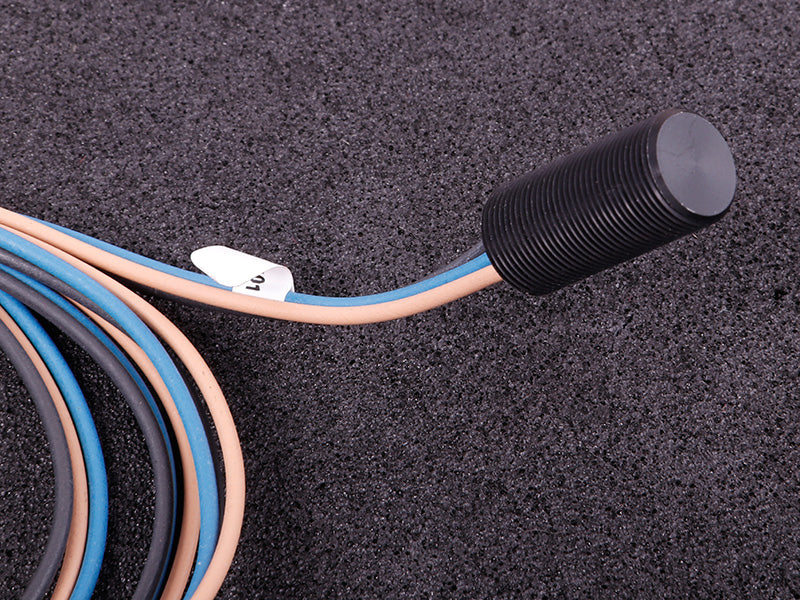

Cam position sensor, digital (short)
Cam position sensor, digital (short)
9.500 ISK
Pulldown output. Requires pull-up resistor (usually built into the ECU).
Detects targets of steel. 5-24v power supply.

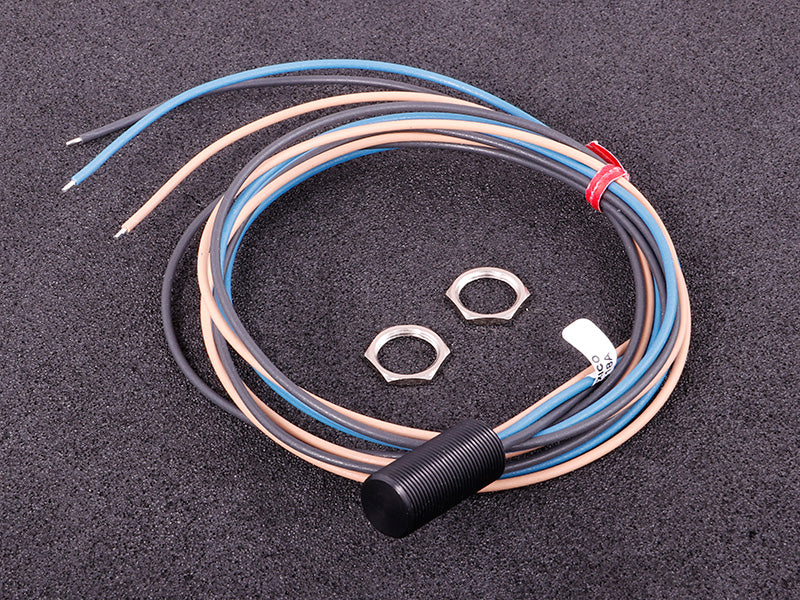

Including nuts for mounting the sensor.
This also serves as a general crank trigger (tested with 60-2 trigger wheel up to 8000rpm with MaxxECU).
Brown: +5-24v
Black: Output
Blue: Sensor GND
15/32-32 thread, 25mm long.
Detects targets of steel. 5-24v power supply.
Including nuts for mounting the sensor.
This also serves as a general crank trigger (tested with 60-2 trigger wheel up to 8000rpm with MaxxECU).
Brown: +5-24v
Black: Output
Blue: Sensor GND
15/32-32 thread, 25mm long.
