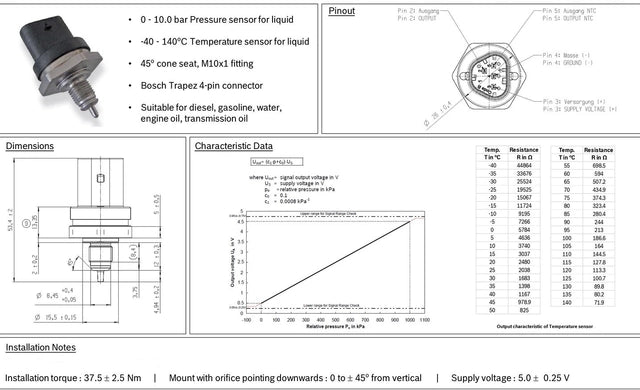

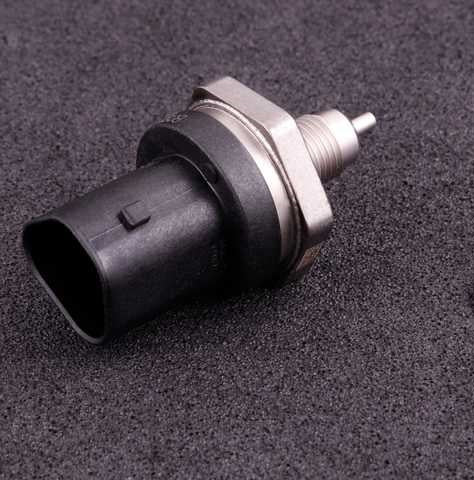

Bosch pressure and temperature sensor (10bar / 140°)

Bosch motorsport sensor that measures both pressure and temperature

Thread: M10x1.0

Bosch article number:  0261230340
Alternatively Bosch no:  0261230482

pin2: Pressure signal out (0.5V = 0bar, 4.5V = 10bar)
pin3: +5V sensor supply
pin4: Sensor GND
pin5: Temperature signal out (0.5V = -40 deg C, 4.5V = 140 deg C)

Connection to Maxxecu:

Pin2 to J3 / J4 Analog inputs (0-5V)
Pin 3 to G1 5v sensor supply
Pin 4 to H1 Sensor ground
Pin5 to J1 / J2 Analog inputs (Temperature)

Area of ​​use:

Diesel, Gasoline, Ethanol, Water, Engine oil, Transmission oil
(Note that the sensor may have a shorter lifetime with Ethanol)
